Engine block, cylinder head, and crankcase256 offers for Toyota in the Middle East (GCC)

Socket Size(s) 10mm tri-square, internal

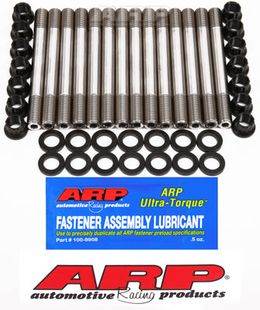

It is for good reason that virtually every top professional engine builder relies on ARP Pro Series head studs for their all-out competition powerplants. Simply stated, there’s not a better stud setup on the market today. For openers, ARP uses a premium grade 8740 alloy that is rated far s

Socket Size(s) 16mm 12pt, 4mm Allen Kit Instructions

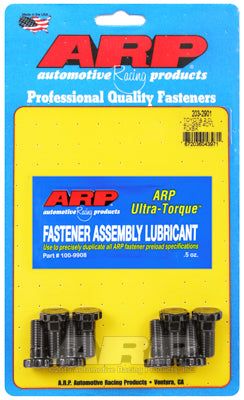

Flywheel and Flexplate bolts play an important role in the performance and safety of race cars and street machines alike. That’s why the fastener experts at ARP have developed special bolts that are far superior to OEM hardware. ARP offers two styles of Flywheel/Flexplate bolts: High Perfo

FERREA F2459P Intake Valve TO I 32.8 5.47 113.65 5.60 15Deg. for TOYOTA GR Yaris (XP210) / TOYOTA GR Corolla (E210) The FERREA F2459P intake valve is designed for precise airflow management and reliable performance within the Toyota G16E-GTS 1.6L DOHC 12-valve engine. Manufactured to exact

FERREA F2458P Exhaust Valve TO E 32 5.47 117 5.60 22Deg. for TOYOTA GR Yaris (XP210) / TOYOTA GR Corolla (E210) The FERREA F2458P exhaust valve is engineered for high-performance applications, providing precise dimensions and reliable operation within the Toyota G16E-GTS 1.6L DOHC 12-valve

31mm OD. 5.25mm shim. 25mm skirt Designed specifically for the Toyota 3RZ-FE Engine Kelford Cams DLC Coated Buckets Feature: larger internal fillet and reinforced skirt. Increased rigidity increases both camshaft and bucket longevity. DLC coated follower surface decrease friction Decreases

264 /264 | 9.70mm/9.65mm Valve Lift

High performance beehive valve springs with titanium retainers for GR Corolla /GR Yaris. Remove OEM base and fit supplied base. Intake: 100lb seat pressure at 35.0mm installed height. 198lb at 12.0mm valve lift. Exhaust: 87lb seat pressure at 36.7mm installed height. 178lb at 11.5mm valve

Valve guides for the Toyota G16E-GTS engine found in the GR Yaris and GR Corolla. Intake and Exhaust guides are identical on this engine. High quality precision machined. Made from own proprietary Manganese Bronze. All guides need honing after fitment.

282°/290° | 11.70mm/11.70mm Valve Lift Drag racing camshafts suited to high rpm power. Suits a professionally built G16E-GTS engine for GR Yaris and 2023 GR Corolla. Turbo size 62mm+.

276°/286° | 11.50mm/11.50mm Valve Lift Stage 2 camshafts designed for street aplications for GR Yaris / GR Corolla G16E-GTS engines with upgraded turbo 54-64mm, producing 500-700hp. Great with ethanol blend fuel, E85. Requires valve spring upgrade.

266°/274° | 11.50mm/11.50mm Valve Lift Stage 1 high performance camshaft. Ideal for G16E-GTS engines with turbo upgrade 48-54mm, 350-500hp. Requires valve spring upgrade.

Conrod Kit Features machined nickel-chrome alloy I-beam connecting rods. 25% stronger than the stock product. Compatible with D24mm piston pin. Surface is finished with a WPC treatment to improve durability.

Piston Basic diameter: dia. 88 / Piston weight: 314g High temperature resistance A2618 material is used for thinner wall thickness and lighter weight. The billet processing reduces waste parts and achieves the lightest weight possible. The bridge-shaped structure increases the rigidity and

Crankshaft Chrome steel-made full counter crankshaft. Inertia weight has been reduced by efficient counterweight placement and lighter pin parts. The balancer shaft was removed to improve response. 50% of the balance rate suppresses the vibrations unique to a three-cylinder engine
