⁦Volkswagen Touran I⁩

0.0•Compact Van•2003 — 2006
‌

⁦Volkswagen Touran I⁩

  • 0.0

  • •

  • Compact Van

  • •

  • 2003 — 2006

  • 0.0

  • •

  • Compact Van

  • •

  • 2003 — 2006

Compact Van, M-class, Front-wheel drive (FWD). Manual, Automatic and Automated Manual Transmission (AMT). Petrol and Diesel engines from 90 to 170 hp.

Compact Van, M-class, Front-wheel drive (FWD). Manual, Automatic and Automated Manual Transmission (AMT). Petrol and Diesel engines from 90 to 170 hp.

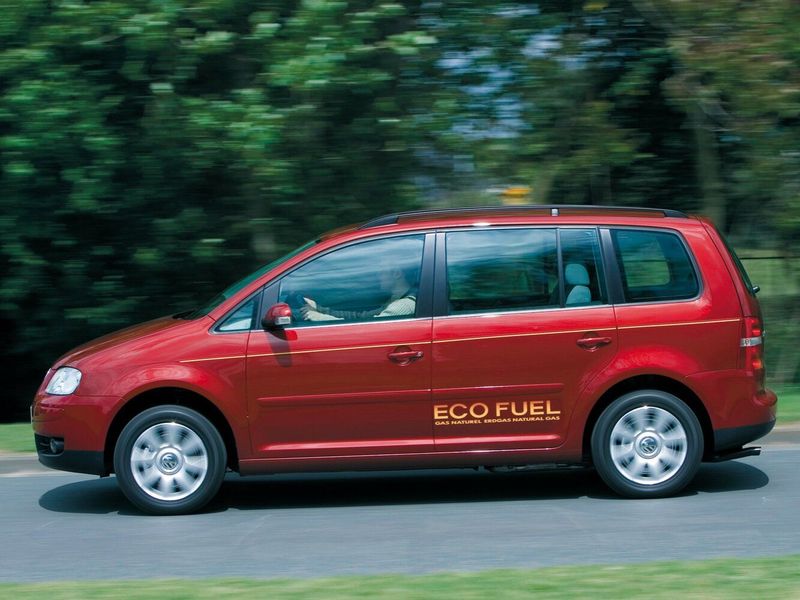

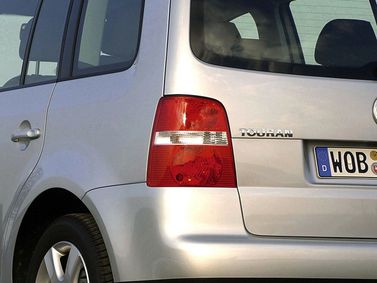

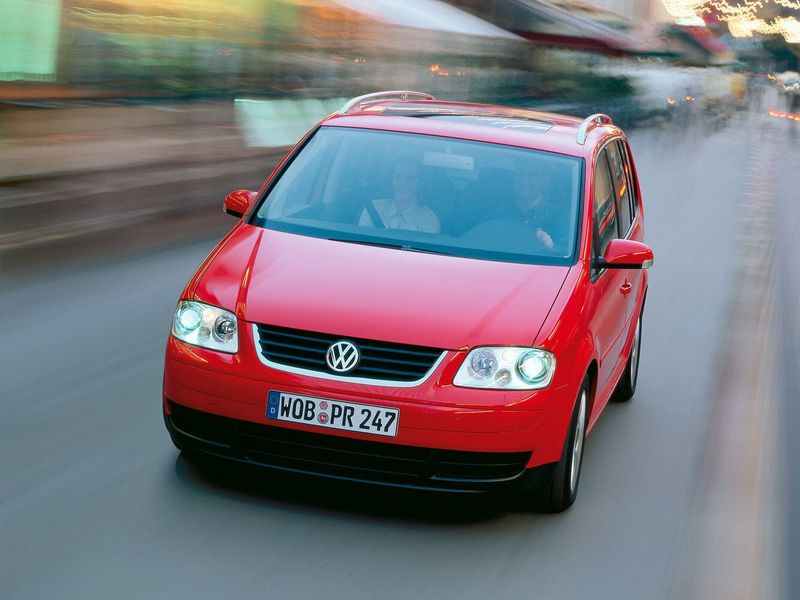

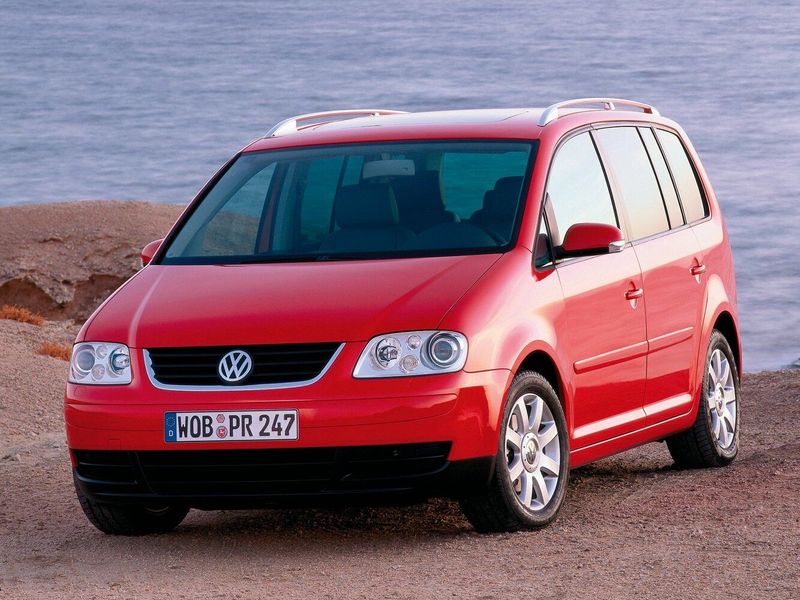

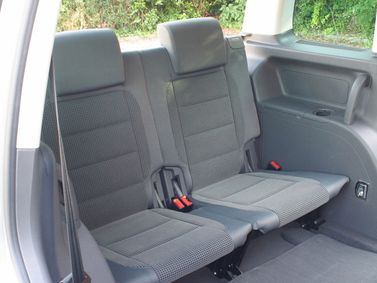

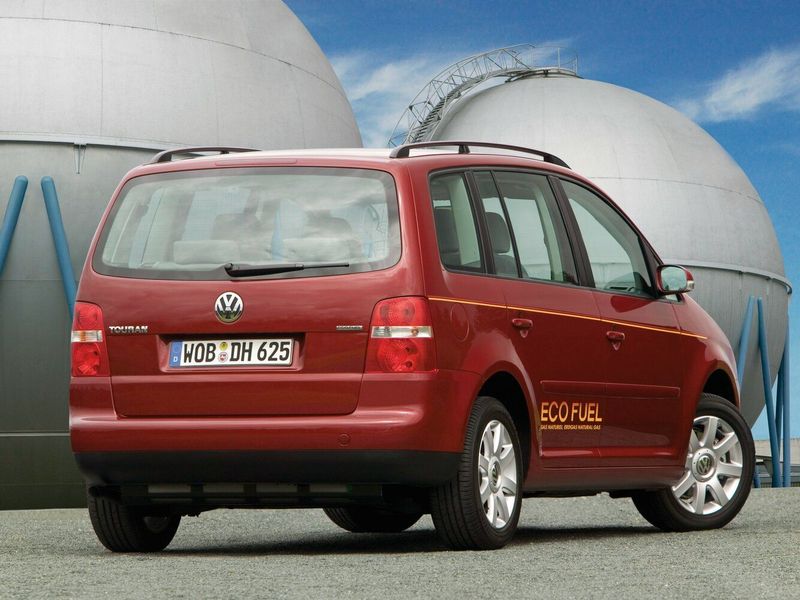

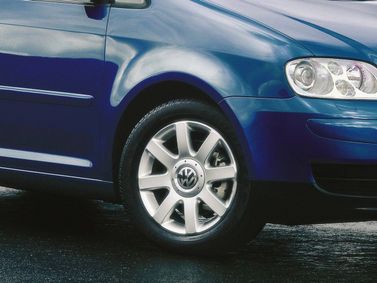

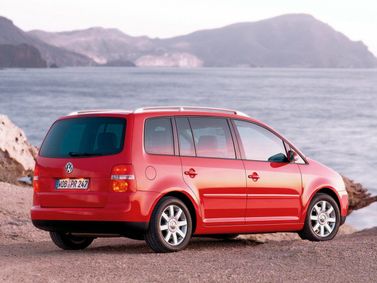

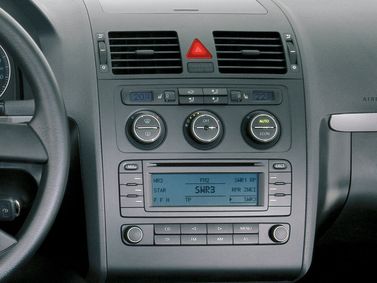

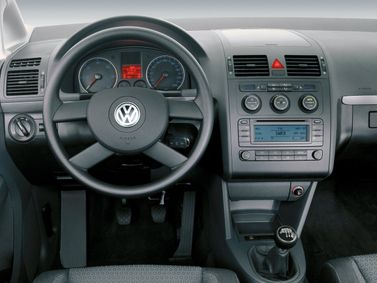

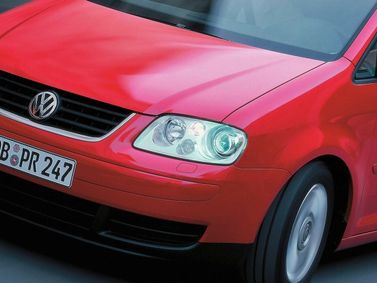

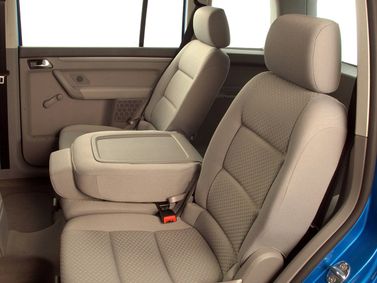

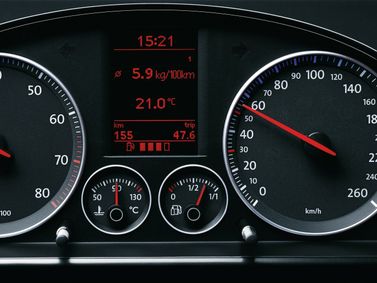

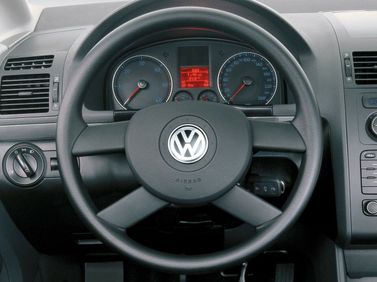

Photo album ⁦Volkswagen Touran I⁩

Photo album ⁦Volkswagen Touran I⁩

Specifications ⁦Volkswagen Touran I⁩

Modification
  • Compact VanBody
  • 102 hp1.6 l, Petrol
  • MTTransmission
  • FWDDrivetrain
  • 12.9 s0-100 km/h
  • 8 lFuel consumption

  • Main

    • Max speed

      179

    • Fuel type

      AI-95 (fuel grade)

    • Number of seats

      5

    • Number of doors

      5

    • Vehicle class

      M

    • Brand country

      Germany

    • Brand country

      Germany

    • Vehicle class

      M

  • Safety

    • Vehicle safety assessment program

      EuroNCAP

    • Vehicle safety rating

      5

    • Steering wheel

      Left-Hand Drive

  • Dimensions

    • Tire size (mm)

      195/65/R15

    • Wheelbase (mm)

      2680

    • Front wheelbase (mm)

      1541

    • Rear wheelbase (mm)

      1514

    • Vehicle height (mm)

      1650

    • Vehicle width (mm)

      1790

    • Vehicle length (mm)

      4390

    • Ground clearance (mm)

      121

    • Bolt pattern

      DIA57.1 5x112

    • Wheel disc dimensions

      6.5x16 ET50, 6x15 ET47, 6x16 ET50

  • Capacity and Weight

    • Vehicle weight (kg)

      1453

    • Fuel tank capacity (liters)

      60

    • Minimum luggage volume (liters)

      710

    • Maximum luggage volume (liters)

      710

    • Gross vehicle weight (kg)

      2200

    • Trunk volume min/max

      710

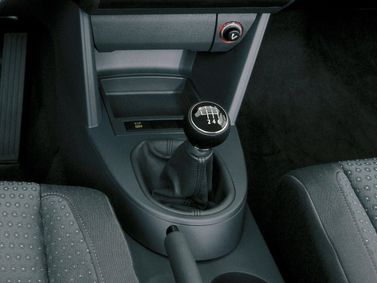

  • Transmission

    • Transmission type

      Manual

    • Drive type

      Front-wheel drive (FWD)

    • Number of gears

      5

  • Suspension and Brakes

    • Rear brake

      Disc brakes

    • Front brake

      Disc brakes

    • Front suspension

      Independent, coil spring

    • Rear suspension

      Independent, coil spring

  • Performance

    • Acceleration 0-100 km/h, seconds

      12.9

    • Fuel consumption (combined, 100 km), liters

      8

    • Highway fuel consumption

      6.4

    • City fuel consumption

      10.9

    • Range

      750

    • Fuel consumption, city/highway/mixed

      10.9/6.4/8.0

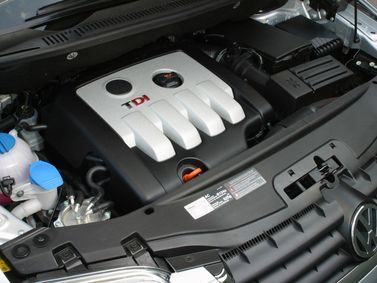

  • Engine

    • Turbocharger type

      No

    • HP (Horsepower)

      102

    • kW (Kilowatt power)

      75

    • Power at RPM (Revolutions Per Minute)

      5600

    • Engine type

      Petrol

    • Firing order of cylinders

      Inline

    • Compression ratio

      10.5

    • Number of cylinders

      4

    • Piston diameter

      81.0x77.4

    • Piston stroke

      77.4

    • Fuel injection system

      Distributed injection (multi-point)

    • Engine layout

      Front, transverse

    • Torque

      148

    • Number of valves

      2

    • Engine capacity (liters)

      1.6

    • Torque at specific RPM

      4800

    • Maximum power

      102 hp (75 kW) at 5600 rpm

    • Engine code

      BGU

    • Engine model

      avu, bfq, bjh

    • Valvetrain

      OHC

Comparison ⁦Volkswagen Touran I⁩

‌
Compact Van
Add any vehicle to compare

News ⁦Volkswagen Touran I⁩

View all 5
  • ‌
    Overview

    VW Touran 2.0 TDI (Mk I 170 PS) specs

    VW Touran 2.0 TDI (Mk I 170 PS) specs • Price in Europe: €31,935 - €33,400 • Car type: Van • Origin country: Germany • Engine: Inline 4 turbo diesel • Displacement: 2.0 l (120 ci / 1968 cc) • Power: 170 ps (168 bhp / 125 kw) @ 4200 rpm • Torque: 350 Nm (258 lb-ft) @ 1750 rpm • Transmission: 6 speed automatic • Layout: front engine, front wheel drive • Top speed: 214 kph (133 mph) • 0-100 kph: 9.0 s • Curb weight: 1640-1693 kg (3616-3732 lbs) • Power/weight: 102 ps (101 bhp) / t • Power/liter: 86 ps (85 hp) • 0 - 50 kph: 3.0 s • 0 - 60 kph: 3.9 s • 0 - 80 kph: 6.2 s • 18m slalom: 59.4 kph (36.9 mph) • Efficiency: 22 PS per l/100 km • 0 - 120 kph: 13.0 s • 0 - 130 kph: 15.6 s • 0 - 140 kph: 17.6 s • 0 - 160 kph: 25.7 s • 100 kph - 0: 37 m (120 ft) • 140 kph - 0: 74 m (241 ft) • 160 kph - 0: 108 m (354 ft) • Years built: 2006 - 2013 • Co 2 emissions: 153 g/km • Noise @ 80 kph: 63 dB • Noise @ 100 kph: 64 dB • Noise @ 130 kph: 69 dB • Noise @ 160 kph: 74 dB • Torque / weight: 210 Nm (155 lb-ft) / t • 60 - 100 kph (4): 6.6 s • 60 - 100 kph (5): 10.3 s • 80 - 120 kph (5): 9.4 s • 80 - 120 kph (6): 12.7 s • Fuel consumption: 10.3-5.3 l/100 km (23-44 mpg US / 27-53 mpg UK) • Est. 100 - 140 kph: 9.4 s Source: https://fastestlaps.com/models/vw-touran-2-0-tdi-170-ps

  • ‌
    Overview

    VW Touran 2.0 EcoFuel (Mk I) specs

    VW Touran 2.0 EcoFuel (Mk I) specs • Car type: Van • Origin country: Germany • Engine: Inline 4 EcoFuel • Displacement: 2.0 l (121 ci / 1984 cc) • Power: 109 ps (108 bhp / 80 kw) @ 5400 rpm • Torque: 160 Nm (118 lb-ft) @ 3500 rpm • Transmission: 5 speed manual • Layout: front engine, front wheel drive • Top speed: 180 kph (112 mph) • 0-100 kph: 13.4 s • Curb weight: 1640 kg (3616 lbs) • Power/weight: 66 ps (66 bhp) / t • Power/liter: 55 ps (54 hp) • 1000 m: 34.6 s • 0 - 40 kph: 2.8 s • 0 - 60 kph: 5.4 s • 0 - 80 kph: 9.0 s • 50 kph - 0: 10 m (33 ft) • 60 kph - 0: 14 m (48 ft) • 80 kph - 0: 25 m (82 ft) • 0 - 120 kph: 19.8 s • 0 - 140 kph: 28.6 s • 100 kph - 0: 39 m (128 ft) • 120 kph - 0: 56 m (185 ft) • Years built: 2006 - 2009 • Noise @ idle: 44 dB • Noise @ 50 kph: 58 dB • Noise @ 80 kph: 61 dB • 40 - 60 kph (3): 4.0 s • 40 - 80 kph (3): 8.0 s • Noise @ 120 kph: 67 dB • Torque / weight: 98 Nm (72 lb-ft) / t • 40 - 100 kph (3): 12.4 s • 80 - 120 kph (4): 12.8 s • 80 - 120 kph (5): 17.8 s • Est. 100 - 140 kph: 15.3 s Source: https://fastestlaps.com/models/vw-touran-2-0-ecofuel

  • ‌
    Overview

    VW Touran 1.6 TDI (Mk I 105 PS) specs

    VW Touran 1.6 TDI (Mk I 105 PS) specs • Price in Europe: €28,400 • Car type: Van • Origin country: Germany • Engine: Inline 4 turbo diesel • Displacement: 1.6 l (98 ci / 1598 cc) • Power: 105 ps (104 bhp / 77 kw) @ 4400 rpm • Torque: 250 Nm (184 lb-ft) @ 1500 rpm • Transmission: 6 speed manual • Layout: front engine, front wheel drive • Top speed: 186 kph (116 mph) • 0-100 kph: 12.8 s • 1/4 mile: 18.5 s • Curb weight: 1572 kg (3466 lbs) • Power/weight: 67 ps (66 bhp) / t • Power/liter: 66 ps (65 hp) • 0 - 80 kph: 8.6 s • 18m slalom: 61.0 kph (37.9 mph) • Efficiency: 15 PS per l/100 km • 0 - 130 kph: 23.2 s • 0 - 160 kph: 44.6 s • 100 kph - 0: 36 m (119 ft) • 130 kph - 0: 63 m (207 ft) • Years built: 2010 - 2015 • 60 - 100 kph: 7.7 s • 80 - 120 kph: 10.7 s • Co 2 emissions: 166 g/km • Noise @ 80 kph: 64 dB • Noise @ 100 kph: 65 dB • Noise @ 130 kph: 68 dB • Noise @ 160 kph: 72 dB • Torque / weight: 159 Nm (117 lb-ft) / t • Fuel consumption: 8.8-4.9 l/100 km (27-48 mpg US / 32-58 mpg UK) Source: https://fastestlaps.com/models/vw-touran-1-6-tdi
