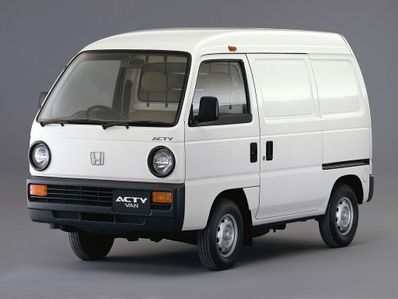

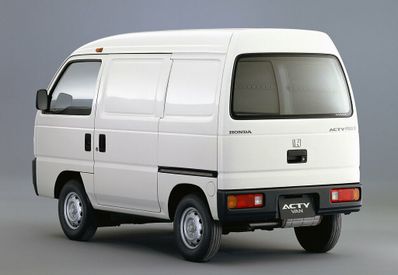

⁦Honda Acty II⁩

0.0•Micro Van•1988 — 1990
‌

⁦Honda Acty II⁩

  • 0.0

  • •

  • Micro Van

  • •

  • 1988 — 1990

  • 0.0

  • •

  • Micro Van

  • •

  • 1988 — 1990

Micro Van, M-class, Rear-wheel drive (RWD) and All-wheel drive (AWD). Automatic and Manual. Petrol engine 34 hp.

Micro Van, M-class, Rear-wheel drive (RWD) and All-wheel drive (AWD). Automatic and Manual. Petrol engine 34 hp.

Photo album ⁦Honda Acty II⁩

Photo album ⁦Honda Acty II⁩

Specifications ⁦Honda Acty II⁩

Modification
  • Micro VanBody
  • 34 hp0.6 l, Petrol
  • ATTransmission
  • RWDDrivetrain

  • Main

    • Fuel type

      AI-92 (fuel grade)

    • Number of seats

      4

    • Number of doors

      5

    • Brand country

      Japan

    • Vehicle class

      M

  • Safety

    • Steering wheel

      Left/right

  • Dimensions

    • Wheelbase (mm)

      1900

    • Front wheelbase (mm)

      1205

    • Rear wheelbase (mm)

      1215

    • Vehicle height (mm)

      1870

    • Vehicle width (mm)

      1395

    • Vehicle length (mm)

      3295

  • Capacity and Weight

    • Vehicle weight (kg)

      780

    • Fuel tank capacity (liters)

      37

  • Transmission

    • Transmission type

      Automatic

    • Drive type

      Rear-wheel drive (RWD)

    • Number of gears

      3

  • Suspension and Brakes

    • Rear brake

      Drum brakes

    • Front brake

      Disc brakes

    • Front suspension

      Independent, coil spring

    • Rear suspension

      Dependent, leaf spring

  • Engine

    • HP (Horsepower)

      34

    • kW (Kilowatt power)

      25

    • Power at RPM (Revolutions Per Minute)

      5500

    • Engine type

      Petrol

    • Firing order of cylinders

      Inline

    • Compression ratio

      9.8

    • Number of cylinders

      3

    • Piston diameter

      62.5x59.5

    • Piston stroke

      59.5

    • Fuel injection system

      Carburetor

    • Engine layout

      central

    • Torque

      44

    • Number of valves

      4

    • Engine capacity (liters)

      0.6

    • Torque at specific RPM

      5000

    • Maximum power

      34 l.S. (25 kW) at 5500 rpm

    • Engine code

      E05A

    • Engine model

      E05A

    • Valvetrain

      SOHC

Comparison ⁦Honda Acty II⁩

‌
Micro Van
Add any vehicle to compare

News ⁦Honda Acty II⁩

View all 2
  • ‌
    Purchase

    Honda ACTY SDX Pickup, 1988

    Chassis No.: HA11002794 Auction: Kissimmee 2018 Auction date: January 14, 2018 Lot No.: L67 $10,450 | Sold • Exterior: White • Interior: Tan • Body: Pickup • Believed to be 39,000 actual miles • Street legal • Maryland Title • 4-speed transmission 4-Speed, 39,000 Miles https://www.mecum.com/lots/311195/1988-honda-acty-sdx-pickup/

  • ‌
    Overview

    Honda Acty Pickup 0.5 AWD (MK II) specs

    Honda Acty Pickup 0.5 AWD (MK II) specs • Car type: Pickup truck • Origin country: Japan • Engine: I3 (E05A) • Displacement: 0.5 l (33 ci / 547 cc) • Power: 35 ps (35 bhp / 26 kw) @ 6500 rpm • Torque: 44 Nm (32 lb-ft) @ 5200 rpm • Transmission: 4/5 speed manual • Layout: front engine, all wheel drive • Curb weight: 670 kg (1477 lbs) • Power/weight: 52 ps (52 bhp) / t • Power/liter: 64 ps (63 hp) • Dimensions: 3.20 m (126 in) long, 1.40 m (55 in) wide, 1.70 m (67 in) high • Wheelbase: 1.90 m (75 in) • Years built: 1988 - 1999 • Torque / weight: 66 Nm (48 lb-ft) / t Source: https://fastestlaps.com/models/honda-acty-pickup-0-5-awd
