Fiat Panda II

0.0•Hatchback 5 dr. Cross•2003 — 2012
‌

Fiat Panda II

  • 0.0

  • •

  • Hatchback 5 dr. Cross

  • •

  • 2003 — 2012

  • 0.0

  • •

  • Hatchback 5 dr. Cross

  • •

  • 2003 — 2012

Hatchback 5 dr. and Hatchback 5 dr. Cross, A-class, Front-wheel drive (FWD) and All-wheel drive (AWD). Manual and Automated Manual Transmission (AMT). Petrol and Diesel engines from 54 to 70 hp.

Hatchback 5 dr. and Hatchback 5 dr. Cross, A-class, Front-wheel drive (FWD) and All-wheel drive (AWD). Manual and Automated Manual Transmission (AMT). Petrol and Diesel engines from 54 to 70 hp.

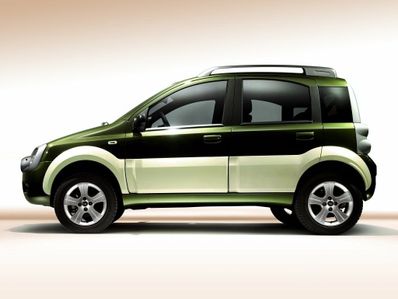

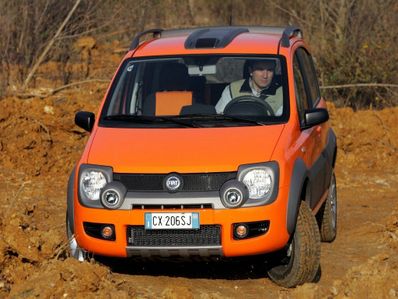

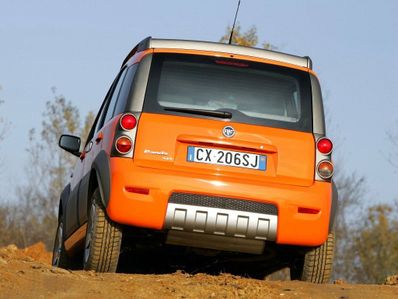

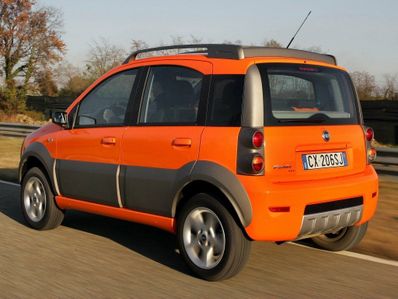

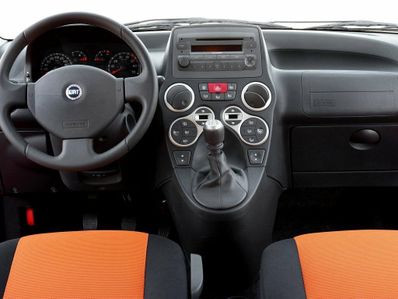

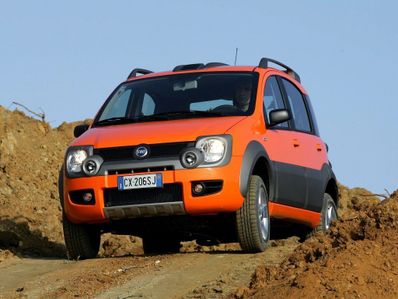

Photo album Fiat Panda II

Photo album Fiat Panda II

Specifications Fiat Panda II

Modification
  • Hatchback 5 dr. CrossBody
  • 70 hp1.3 l, Diesel
  • MTTransmission
  • AWDDrivetrain
  • 18 s0-100 km/h
  • 5.2 lFuel consumption

  • Main

    • Max speed

      150

    • Fuel type

      Diesel fuel

    • Number of seats

      4;5

    • Number of doors

      5

    • Vehicle class

      A

    • Brand country

      Italy

    • Brand country

      Italy

    • Vehicle class

      A

  • Safety

    • Steering wheel

      Left-Hand Drive

  • Dimensions

    • Tire size (mm)

      155/80/R13

    • Wheelbase (mm)

      2299

    • Front wheelbase (mm)

      1366

    • Rear wheelbase (mm)

      1357

    • Vehicle height (mm)

      1540

    • Vehicle width (mm)

      1589

    • Vehicle length (mm)

      3538

    • Ground clearance (mm)

      200

  • Capacity and Weight

    • Vehicle weight (kg)

      1090

    • Fuel tank capacity (liters)

      35

    • Minimum luggage volume (liters)

      206

    • Maximum luggage volume (liters)

      860

    • Trunk volume min/max

      206/860

  • Transmission

    • Transmission type

      Manual

    • Drive type

      All-wheel drive (AWD)

    • Number of gears

      5

  • Suspension and Brakes

    • Rear brake

      Drum brakes

    • Front brake

      Disc brakes

    • Front suspension

      Independent, coil spring

    • Rear suspension

      Semi-independent, torsion beam

  • Performance

    • Acceleration 0-100 km/h, seconds

      18

    • Fuel consumption (combined, 100 km), liters

      5.2

    • Highway fuel consumption

      4.2

    • City fuel consumption

      6.7

    • Range

      673

    • Fuel consumption, city/highway/mixed

      6.7/4.2/5.2

  • Engine

    • Turbocharger type

      Turbocharging

    • HP (Horsepower)

      70

    • kW (Kilowatt power)

      51

    • Power at RPM (Revolutions Per Minute)

      4000

    • Engine type

      Diesel

    • Firing order of cylinders

      Inline

    • Compression ratio

      18

    • Number of cylinders

      4

    • Piston diameter

      69.6x82

    • Piston stroke

      82

    • Fuel injection system

      Common Rail (diesel)

    • Engine layout

      Front, transverse

    • Torque

      180

    • Number of valves

      4

    • Engine capacity (liters)

      1.3

    • Torque at specific RPM

      1750

    • Maximum power

      70 hp (51 kW) at 4000 rpm

    • Engine code

      188 A9.000

    • Engine model

      188 A9.000

    • Valvetrain

      DOHC

Comparison Fiat Panda II

‌
Hatchback 5 dr. Cross
Add any vehicle to compare

News Fiat Panda II

View all 11
  • ‌
    Overview

    Fiat Panda 4×4 1.3 Multijet (MK II 75PS) specs

    Fiat Panda 4×4 1.3 Multijet (MK II 75PS) specs • Car type: Compact • Introduced: 2010 • Origin country: Italy • Engine: Inline 4 16V DOHC Turbo Diesel (Multijet) • Displacement: 1.2 l (76 ci / 1248 cc) • Power: 75 ps (74 bhp / 55 kw) @ 4000 rpm • Torque: 145 Nm (107 lb-ft) @ 1500 rpm • Transmission: 5 Speed Manual • Layout: front engine, all wheel drive • Curb weight: 1075 kg (2370 lbs) • Power/weight: 70 ps (69 bhp) / t • Power/liter: 60 ps (59 hp) • Dimensions: 3.57 m (141 in) long, 1.59 m (63 in) wide, 1.63 m (64 in) high • Tyres: Bridgestone Dueler H/T • Torque / weight: 135 Nm (99 lb-ft) / t Source: https://fastestlaps.com/models/fiat-panda-4x4-multijet-dpf

  • ‌
    Overview

    Fiat Panda 4×4 1.2 Fire (Mk II 69PS) specs

    Fiat Panda 4×4 1.2 Fire (Mk II 69PS) specs • Car type: Compact • Origin country: Italy • Engine: Inline 4 8V SOHC (FIRE) • Displacement: 1.2 l (76 ci / 1242 cc) • Power: 69 ps (68 bhp / 51 kw) @ 5500 rpm • Torque: 102 Nm (75 lb-ft) @ 3000 rpm • Transmission: 5 Speed Manual • Layout: front engine, all wheel drive • Top speed: 148 kph (92 mph) • 0-100 kph: 15.3 s • Curb weight: 1040 kg (2293 lbs) • Power/weight: 66 ps (65 bhp) / t • Power/liter: 56 ps (55 hp) • Dimensions: 3.57 m (141 in) long, 1.59 m (63 in) wide, 1.63 m (64 in) high • Tyres: Bridgestone Dueler H/T • Years built: 2010 - 2012 • Torque / weight: 98 Nm (72 lb-ft) / t Source: https://fastestlaps.com/models/fiat-panda-4x4-euro-5

  • ‌
    Overview

    Fiat Panda 4×4 1.3 Multijet (Mk II 69PS) specs

    Fiat Panda 4×4 1.3 Multijet (Mk II 69PS) specs • Car type: Compact • Origin country: Italy • Engine: Inline 4 16V DOHC Turbo Diesel (Multijet) • Displacement: 1.2 l (76 ci / 1248 cc) • Power: 69 ps (68 bhp / 51 kw) @ 4000 rpm • Torque: 145 Nm (107 lb-ft) @ 1500 rpm • Transmission: 5 Speed Manual • Layout: front engine, all wheel drive • Top speed: 150 kph (93 mph) • 0-100 kph: 17.6 s • Curb weight: 1090-1160 kg (2403-2557 lbs) • Power/weight: 61 ps (60 bhp) / t • Power/liter: 55 ps (55 hp) • Dimensions: 3.54 m (139 in) long, 1.63 m (64 in) high • Tyres: Bridgestone Dueler H/T • 1000 m: 38.1 s • 0 - 40 kph: 3.1 s • 0 - 60 kph: 6.0 s • 0 - 80 kph: 10.5 s • Efficiency: 11 PS per l/100 km • 0 - 120 kph: 28.4 s • Gas mileage: 7.7-5.2 l/100 km (31-45 mpg US / 37-54 mpg UK) • Years built: 2005 - 2010 • Noise @ idle: 49 dB • Noise @ 50 kph: 66 dB • Noise @ 80 kph: 67 dB • 40 - 60 kph (3): 3.5 s • 40 - 80 kph (3): 7.6 s • Noise @ 120 kph: 74 dB • Torque / weight: 129 Nm (95 lb-ft) / t • 80 - 120 kph (4): 17.8 s • 80 - 120 kph (5): 24.9 s Source: https://fastestlaps.com/models/fiat-panda-4-4-multijet
