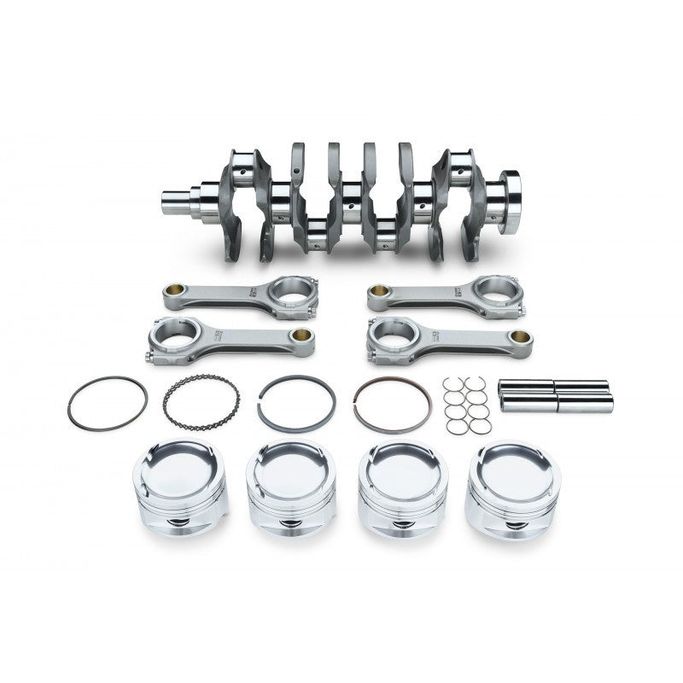

For sale TOMEI TA201A-MT01BP Stroker Kit 2.3 (CP piston) for MITSUBISHI EVO 1-9 (4G63) 1992-2007 in UAE, Dubai
19,510 AED
For sale TOMEI TA201A-MT01BP Stroker Kit 2.3 (CP piston) for MITSUBISHI EVO 1-9 (4G63) 1992-2007 in UAE, DubaiListing #103805
19,510 AED
Specifications
- CategoryEngine
- Part TypeCylinder Block, Head & Crankcase
- ConditionNew
- ArticleTA201A-MT01BP
May fit
For reference only — please check with the seller before purchasing
Description
Application 4G63 Type TOMEI CP Bore (mm) 86.00 (OEM +1.0) 86.00 (OEM +1.0) STROKE (mm) 100.00 (OEM +12.0 ) 100.00 (OEM +12.0 ) DISPLACEMENT (cc) 2323.5 2323.5 C.C. VOLUME (cc) 43.0 43.0 PISTON VOLUME (cc) -19.5 -19.6 PISTON DECK CLEARANCE/HIGHT (mm) -0.35 -0.35 PISTON COMP.HEIGHT (mm) 31.65 (OEM -3.35) 31.65 (OEM -3.35) ROD C-to-C (mm) 147.00 (OEM -3.0) 147.00 (OEM -3.0) HEAD GASKET BORE (mm) 86.5 86.5 C/R With 86.5-1.0 9.25 9.24 C/R With 86.5-1.2 9.11 9.10 C/R With 86.5-1.5 8.92 8.91 C/R With 86.5-1.8 8.73 8.72 Compatibility
